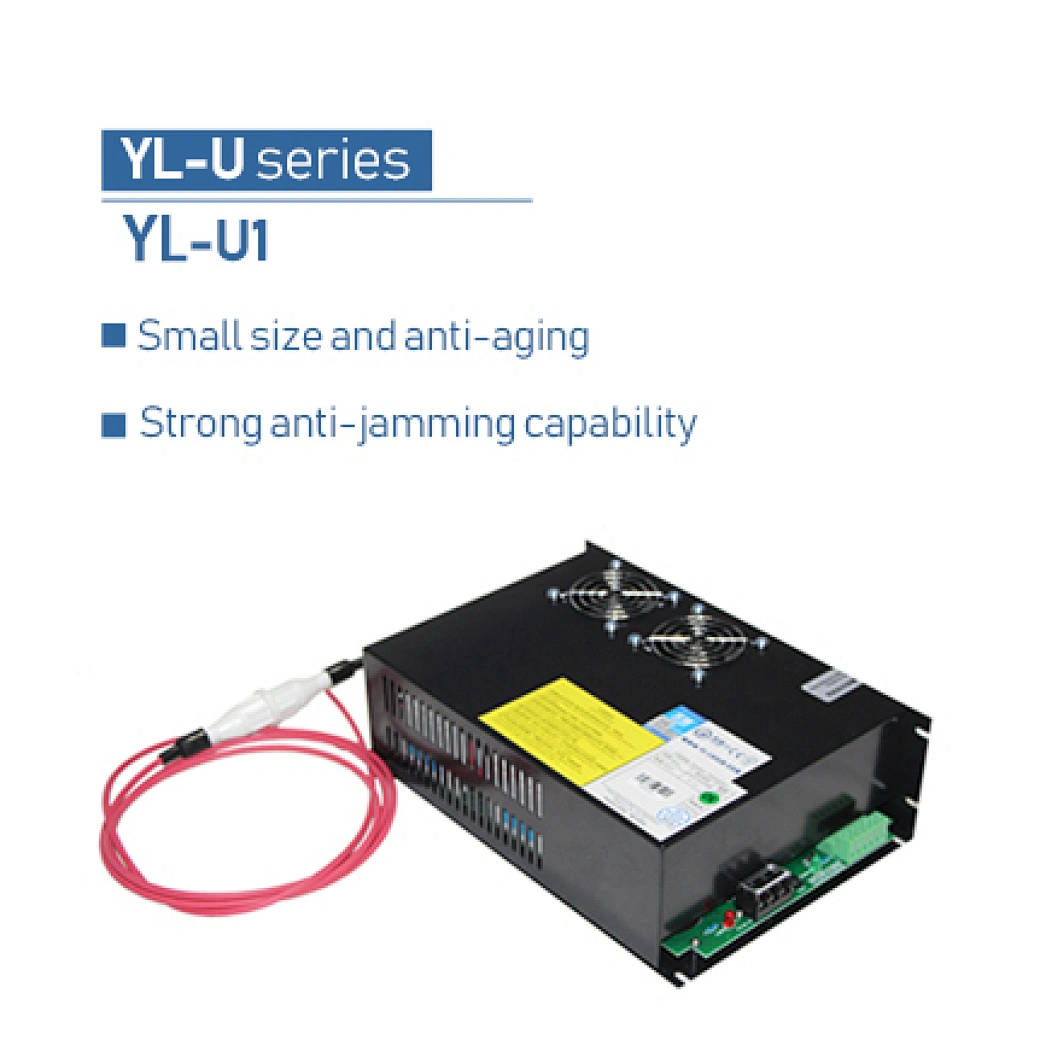

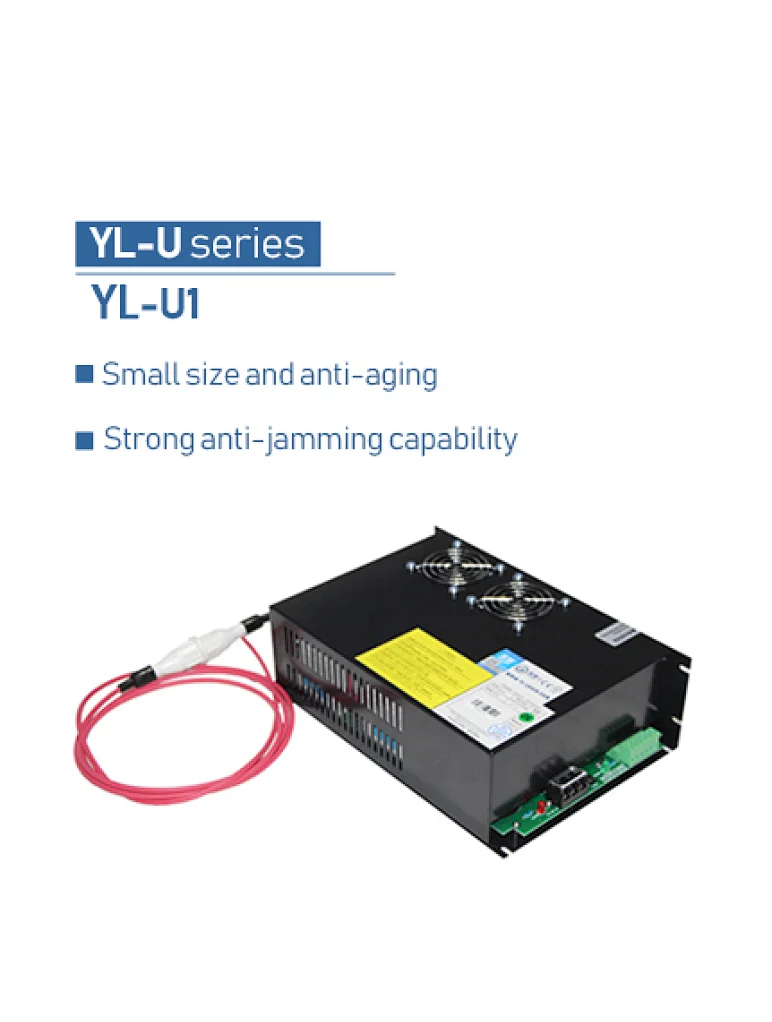

Model NO.
YL-U1
Quantity:

YL-U1 is the standard power supply for Yongli 80W-100W CO2  laser tubes,

which perfectly compatible with Yongli A1s(75W-90W), A2s(90W-100W), A4s(100W-130W), H1 (75W-90W), H2(90W-100W) and  H4(100W-130W) CO2  laser tubes.

YL-U1 can also be adapted to other brands of CO2 laser tubes with an output power between 90W to 130W.

Technical Parameters

Input VoltageAC220V or  AC110V (Optional)
AC Input Frequency47~440Hz
Dimensions270mm x 180mm x 80mm
Over Current ProtectionYes
Open Circuit ProtectionYes (Within a Certain Time)
Cooling MethodFan Cooling
Operating Temperature-30℃ ~ 65℃
Relative Humidity20-85%RH (Non-Consendate)
Vibration ResistanceAmplitude:1mm / Frequency 30Hz / 2 Hours
Ageing TimeContinuous over 4 hours / Pulse over Half an Hour (Frequency 60Hz)

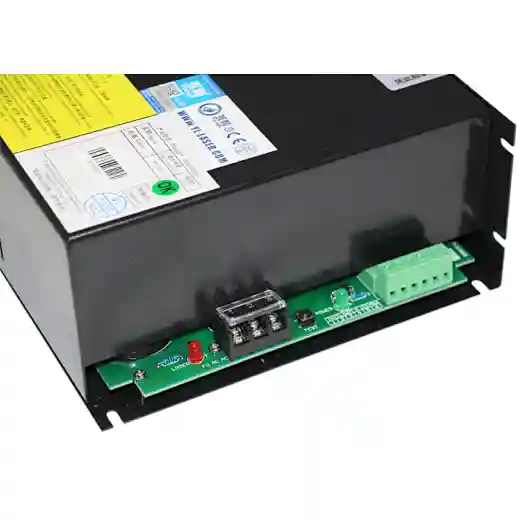

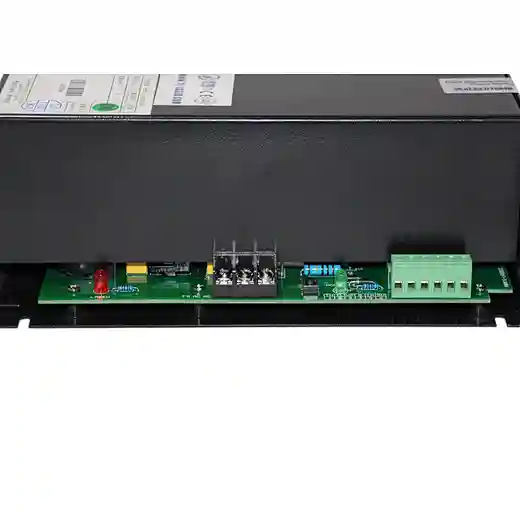

For Laser Tube connections and Pin definitions please check the tables below:

100w laser power supply

THInput SignalHigh-level ≥ 3V Pmin-Pmax
TLInput SignalShort-circuited When Not Use
WPProtection SwitchesShort-circuited When Not Use
GSignal GroundWell Connected
INInput Signal0-5V Analogue Signals or PWM Signals (1≥20KHz)
5VOutput PowerOutput Voltage: 5V / Max Output Current: 50mA
