Model NO.
A4s/H4
Quantity:

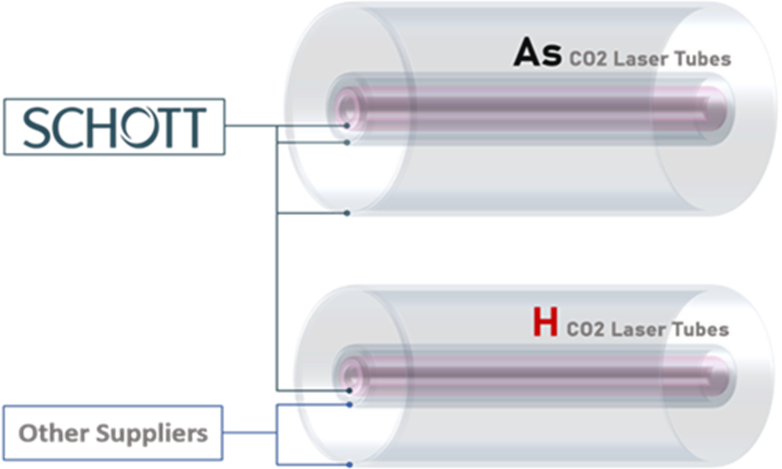

The discharge tube quality is one of the key factors that affect the lifespan and stability of CO2 Laser Tubes. In order to increase its quality of it, we chose the global leading glass supplier, German Schott, for our 3rd generation of CO2 Laser Tubes. Chasing for further optimization, Yongli enhanced the mode of the As series. And both adopt the Chemical method of Discharge Coating.

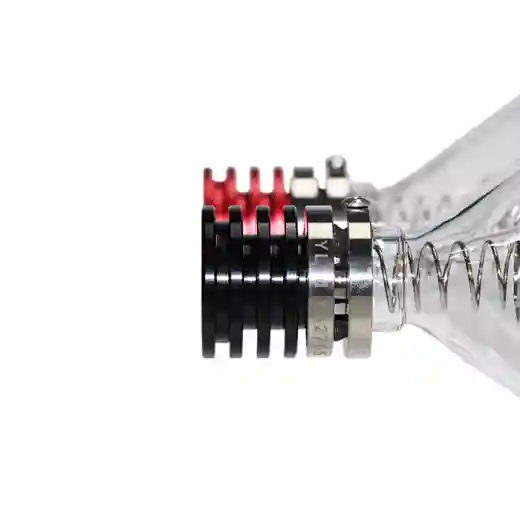

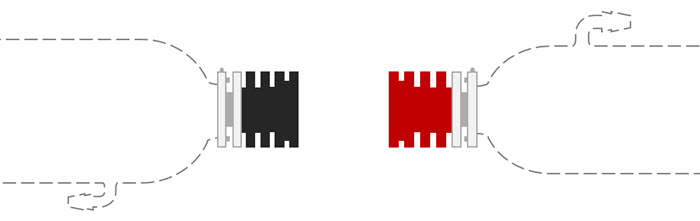

Metal Thermal Dissipation Cap allows As and H series CO2 laser tubes to be capable of continuously working for a considerably long time.

                   co2 laser tube 100w

Yongli's unique producing techniques make the As and H series laser tubes contribute stable working status even during a long-time and continue laser processing job.

100W CO2 Laser Tubes A4s and H4 are mostly applied to the laser cutting process, yet, due to the excellent beam quality and an OK response time, sometimes it is also been used for laser engravings.

 High-Performance VS Cost-Efficiency

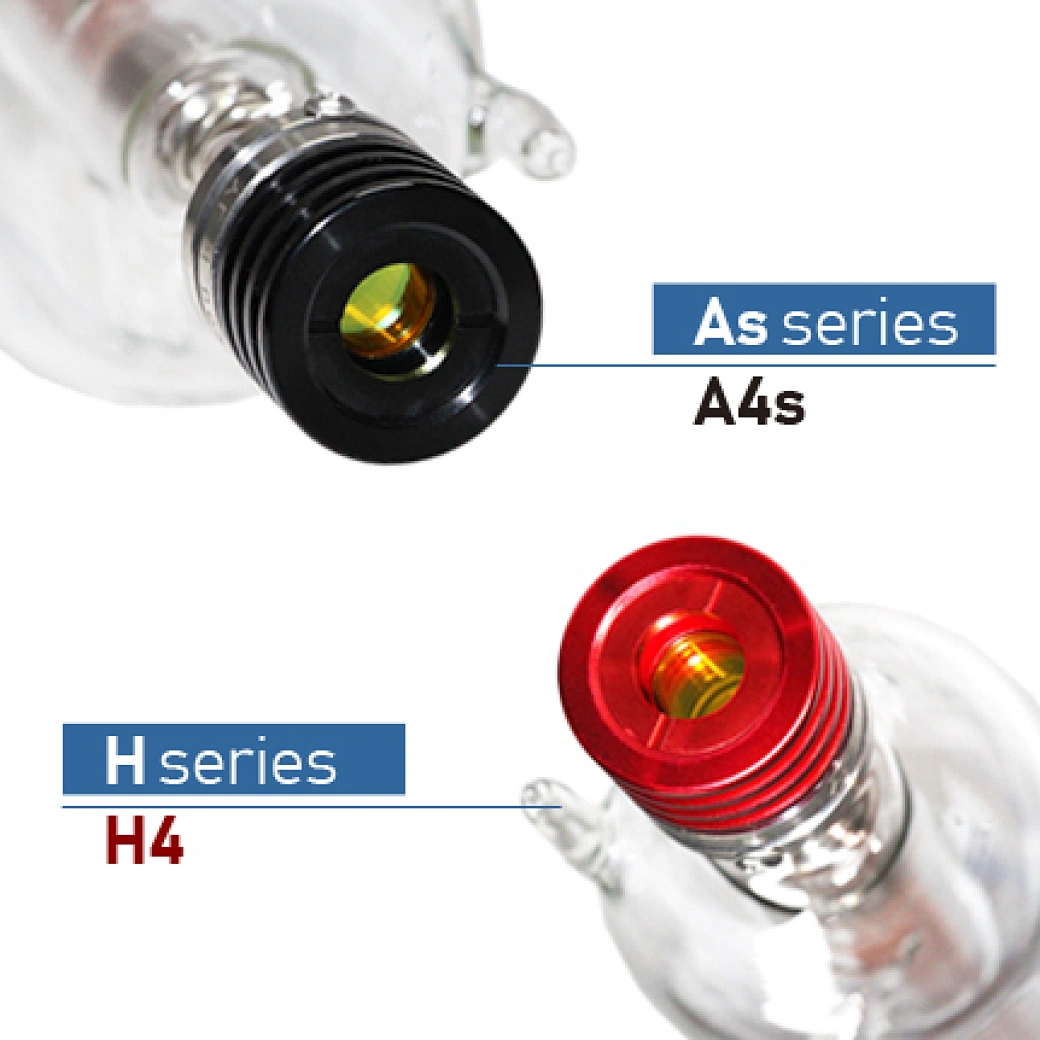

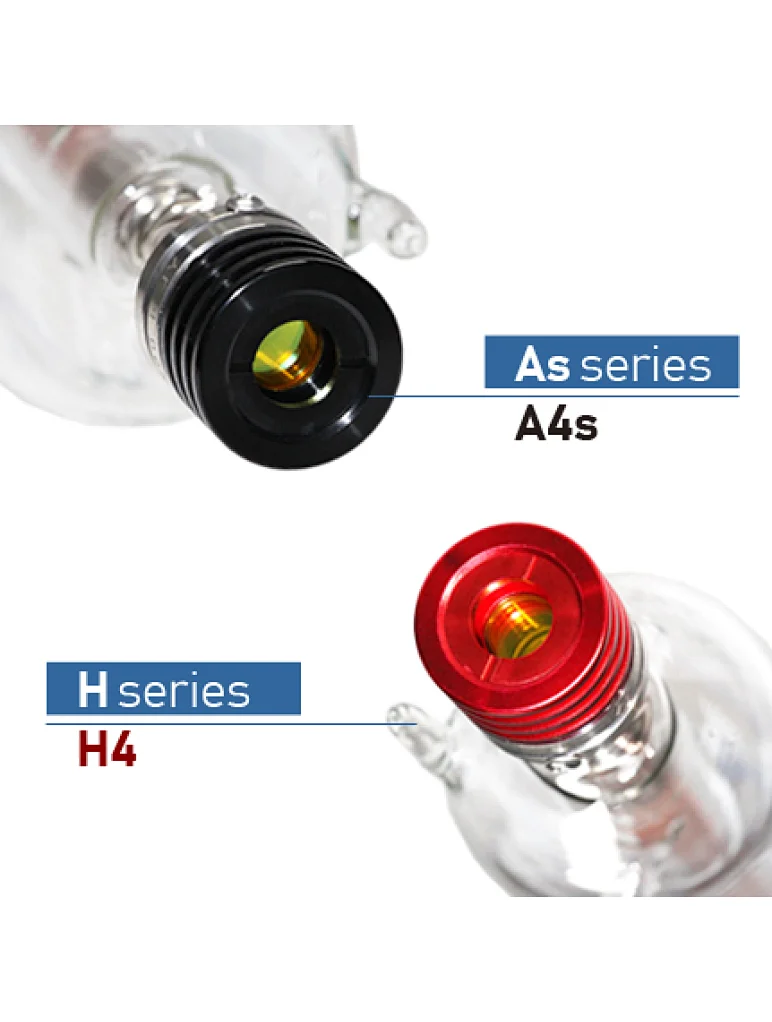

ModelYongli A4s CO2 Laser TubeYongli H4 CO2  Laser Tube
Rated Power 100 W
Peak Power 130 W
Length1450 mm
Working Current28 mA
Recommend Working Current 22 mA
Ignition Voltage 25 kV28 kV
Working Voltage19 kV22 kV
Outer Diameterφ80 mmφ60 mm
Working Life12000 Hours7500 Hours
CatalystYES, Islands Structural (Gold) CoatingYES, Chemical Coating Technique
Warranty12 Months10 Months

As series laser tubes combine the latest technologies, top-notch raw materials and international manufacturing and testing standard.

No matter in output power, stability or working life, Yongli As series CO2  glass laser tubes ranking the top in nowadays CO2 laser market.

Whereas, the high performance of As CO2  laser tubes requires high costs. To meet Cost-effective enquiries from customers worldwide, Yongli developed and fabricated H-series laser tubes. If you are looking for cost-effective and also bringing fine laser cutting or engraving results. Yongli H series laser tubes are the best choice.

A4s & H4 Laser Tubes Cutting Performance Reference Table

 *Please note that the cutting performance will be also influenced by the machine parameters or other factors, for instance, the quality of the laser beam alignment. *

MaterialsThickness

Fastest

Speed

Suggested

Speed

Acrylic 3 mm35 mm/s30 mm/s
5 mm17 mm/s12 mm/s
8 mm12 mm/s8 mm/s
10 mm8 mm/s5 mm/s
15 mm5 mm/s3 mm/s
20 mm3 mm/s1 mm/s
Die-board15 mm4 mm/s3 mm/s
18 mm2 mm/s1.2 mm/s
MDF3 mm25 mm/s20 mm/s
5 mm18 mm/s15 mm/s
10 mm9 mm/s6.5 mm.s
15 mm4 mm/s3 mm/s
LeatherSingle Layer40 mm/s35 mm/s

Wood

(Exluding hard wood)

3 mm30 mm/s28 mm/s
5 mm25 mm/s22 mm/s
10 mm15 mm/s13 mm/s
15 mm11 mm/s8 mm/s
FabricSingle Layer300 mm/s295 mm/s
PVC2 mm80 mm/s78 mm/s
3 mm70 mm/s68 mm/s
4 mm65 mm/s63 mm/s
Dual-color Board2 mm45 mm/s40 mm/s
PaperSingle Layer350 mm/s40 mm/s

Atificial   Rubber

(2 Layers)

4 mm+1 mm40 mm/s38 mm/s
6 mm+2 mm25 mm/s23 mm/s

------------------------------------------

Acrylic:
To get a smooth and even acrylic cutting result, also avoid burnings. Please pay attention to the airflow control. Try to use small volume airflow on the surface of the acrylic or apply the side blow method, make sure there is also airflow at the bottom of the acrylic plate as well.

 Die-board:

Focal length and Airflow are key factors for Die-board cutting. We suggest utilizing the focal lens with over 100mm focal length. Such a focus path will make the knife slit more precise.

Faster cutting speed requires greater airflow on the material surface.
The smaller the nozzle mouth applied, the more cutting power you will get.

 MDF:

The faster-cutting speed requires greater airflow over the material surface.

 Leather & Fabric:

Laser power between 60W-100W is suggested and also equipped with a focal lens of 50 FL and a small power air compressor.

 Wood:

The faster-cutting speed requires greater airflow over the material surface.

 PVC & Dual-color Board:

Laser power between 60-100W is suggested and also equipped with a focal lens of 50 FL and try to control the output power between 50%-70%.

 Steel:

Steel cutting will need Oxygen support during the cutting process. Air Pressure:0.8 MPa.

  Paper:

 Low laser power and fast speed for paper cutting are highly recommended. There is no perfect power and speed for multi-types of machines, get the correct power and speed on your test, please.

 Artificial Rubber:

Normally, rubber cutting is a single-layer process, the reference we offered in this table is based on a double-layer cutting test.

------------------------------------------

Please don't be hesitate to contact either our pre-sale service online or any account manager you familiar with for your questions or concerns.
