150W CO2 Laser Power Supply
Long Lifespan
Easy Control
Open Circuit Protection
High Compatibility

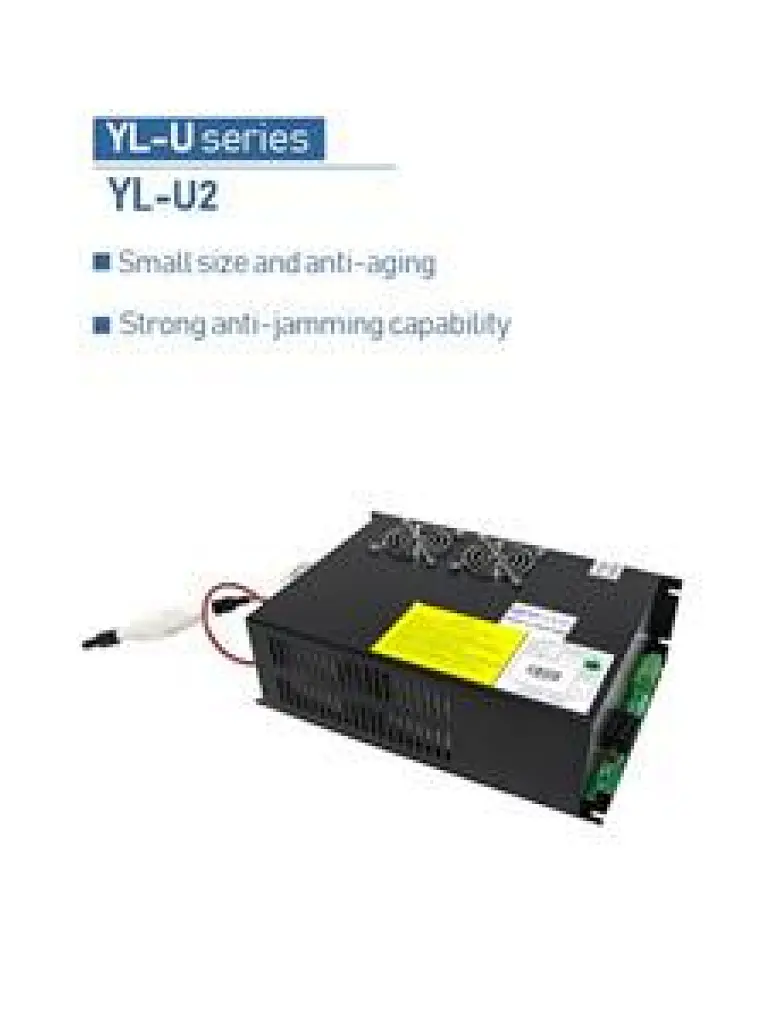

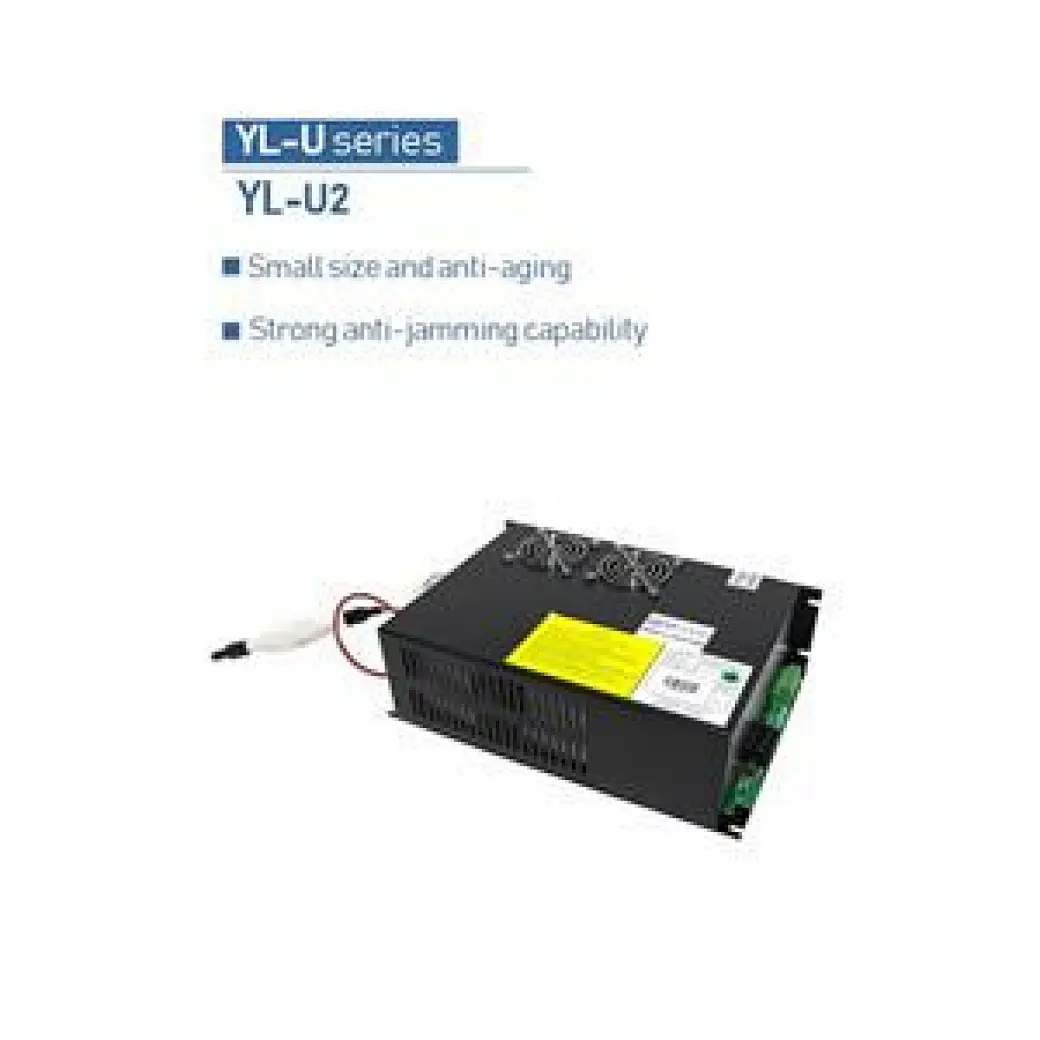

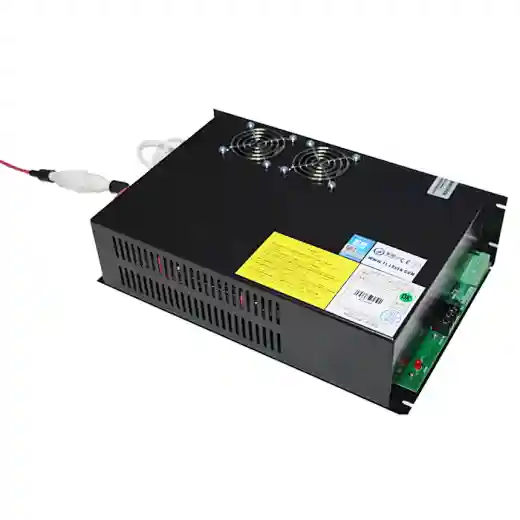

According to the features of Yongli's 130W-180W CO2 laser tubes, our R&D Department cooperates with Electronic Assembly Dept. to design and fabricate the YL-U2 CO2 Laser Tube Power Supply, which are perfectly compatible with A6s(130W-160W), A8s(150W-180W), H6(130W-160W) and H8(150W-180W) CO2 laser tubes.
YL-U2 can also be adapted to other brands of CO2 laser tubes with an output power of 130W to 180W.
Technical Parameters
Input Voltage | AC220V or AC110V (Optional) |
AC Input Frequency | 47~440Hz |
Over Current Protection | Yes |
Open Circuit Protection | Yes (Within a Certain Time) |

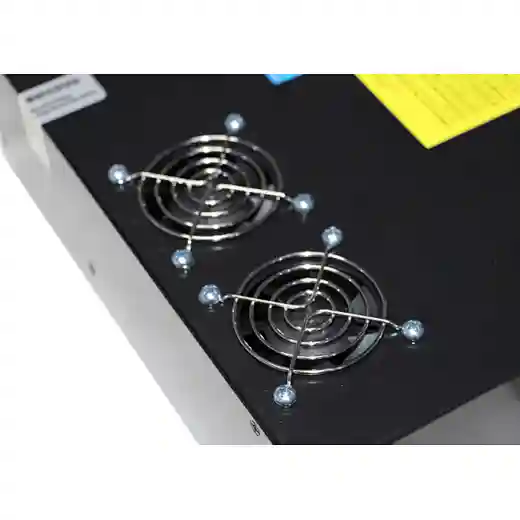

Cooling Method | Fan Cooling |
Operating Temperature | -30℃ ~ 65℃ |
Relative Humidity | 20-85%RH (Non-Consendate) |
Vibration Resistance | Amplitude:1mm / Frequency 30Hz / 2 Hours |
Ageing Time | Continuous over 4 hours / Pulse over Half Hour ( 60Hz) |

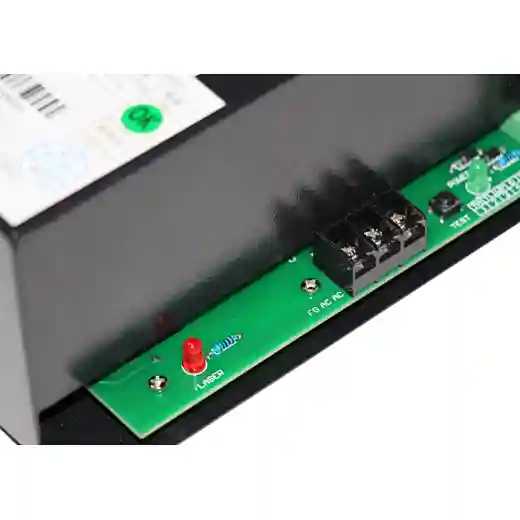

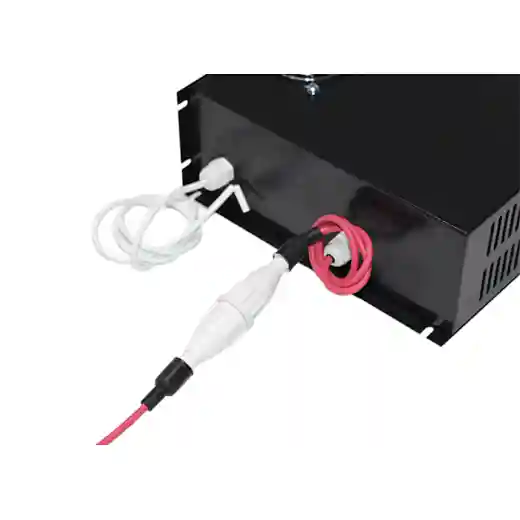

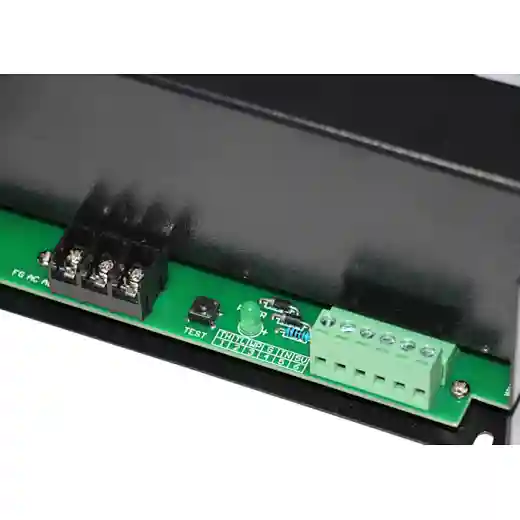

For Laser Tube connections and Pin definitions please check the tables below:
TH | Input Signal | High-level ≥ 3V Pmin-Pmax |
TL | Input Signal | Short-circuited When Not Use |
WP | Protection Switches | Short-circuited When Not Use |
G | Signal Ground | Well Connected |
IN | Input Signal | 0-5V Analogue Signals or PWM Signals (1≥20KHz) |
5V | Output Power | Output Voltage: 5V / Max Output Current: 50mA |
