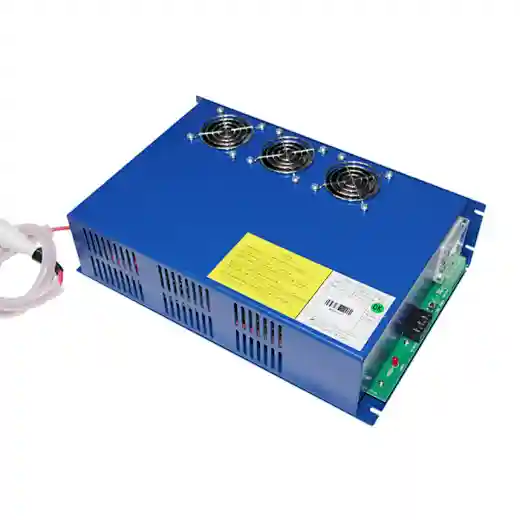

300W CO2 Laser Power Supply

YL-HSP200

Negtive High Voltage Power Supply
Long Life Span
High-stability

Delivery

All Incoterms

minimum order

1 piece

Supply Ability

30piece / Day

Country of Origin

China

Stock Time

1-5Day

Quantity

Contact Now

add to cart

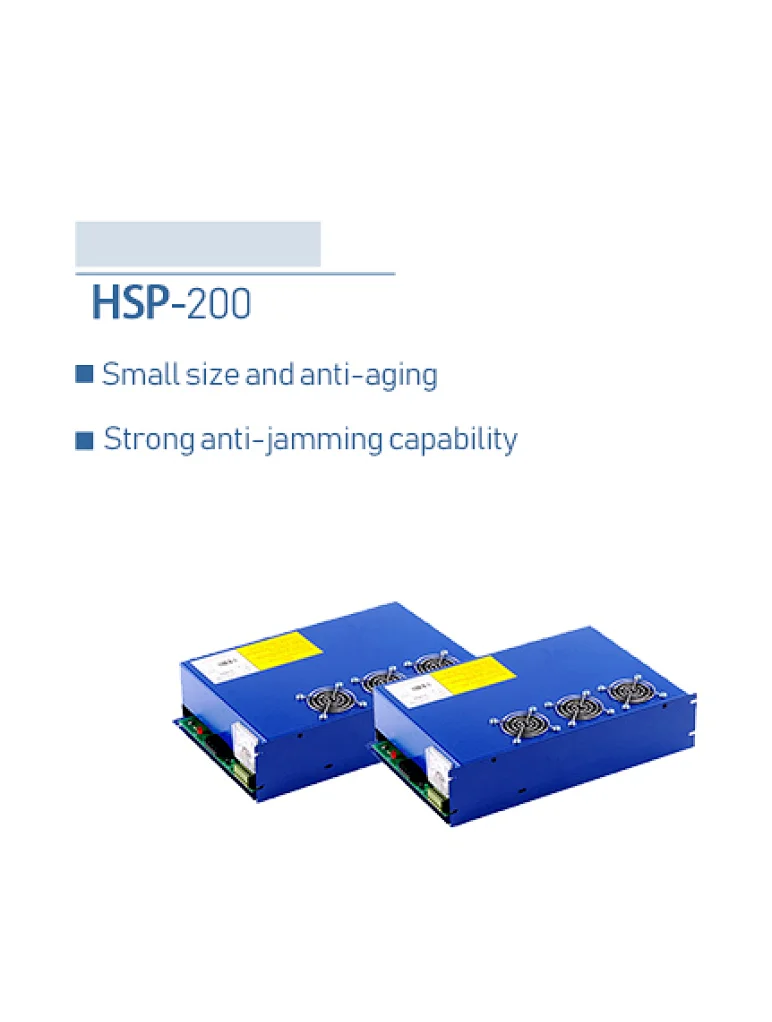

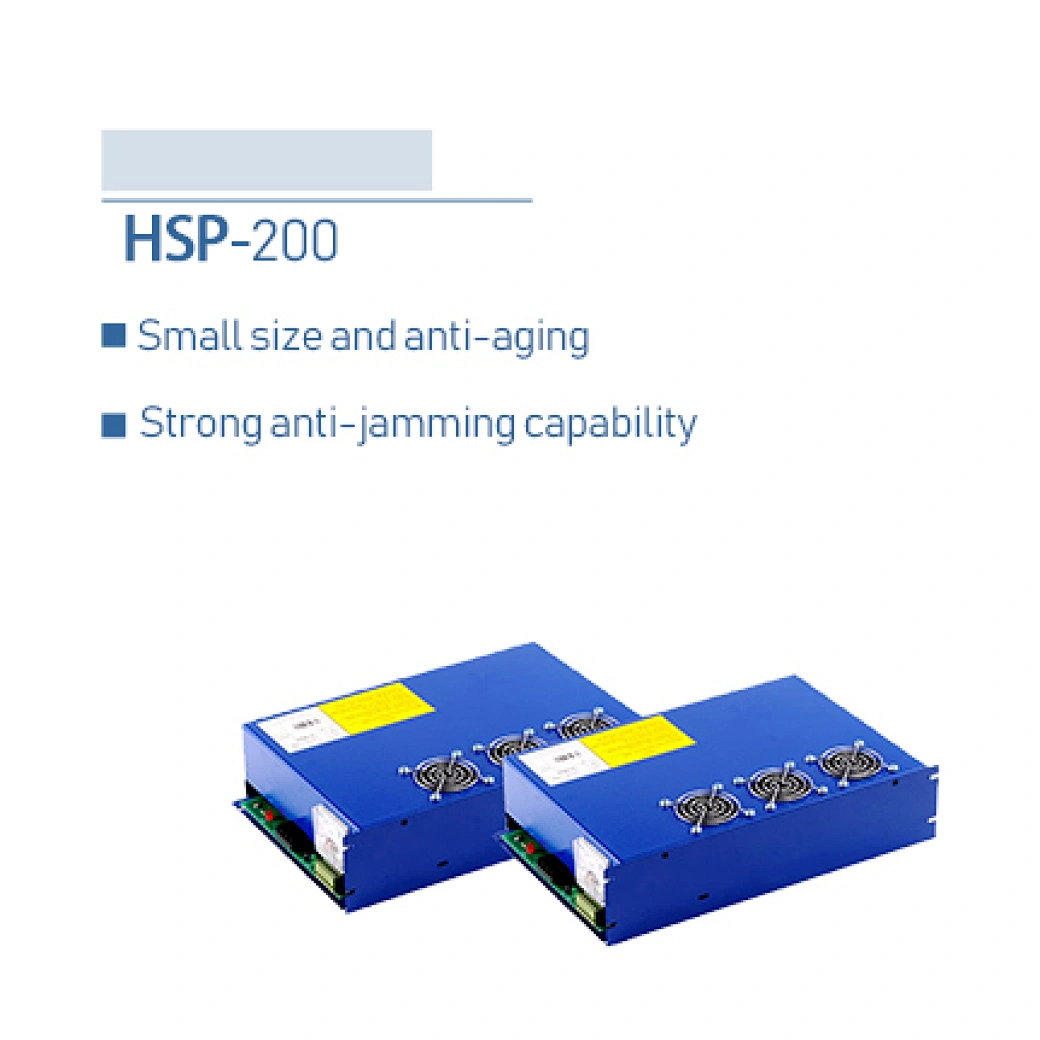

HSP-200 is CO2 Power Laser Source designed for Yongli patented CO2  Laser Products, the Beam Combined CO2  Laser Tubes DLT-300P and DLT-40Z.

Due to the technical particularity of Yongli 300W CO2 Laser Tube, the DLT-300P, HSP-200 PSU, applies the Negative High-voltage techniques. to enhance the performance of our high-power laser.

Technical Parameters

Input   Voltage	AC220V or   AC110V (Optional)
AC Input Frequency	47~440Hz
Over Current Protection	Yes
Open Circuit Protection	Yes (Within a Certain Time)
Cooling Method	Fan Cooling
Operating Temperature	-30℃ ~ 65℃
Relative Humidity	20-85%RH   (Non-Consendate)
Vibration Resistance	Amplitude:1mm /   Frequency 30Hz / 2 Hours
Ageing Time	Continuous over 4   hours / Pulse over Half an Hour (Frequency 60Hz)

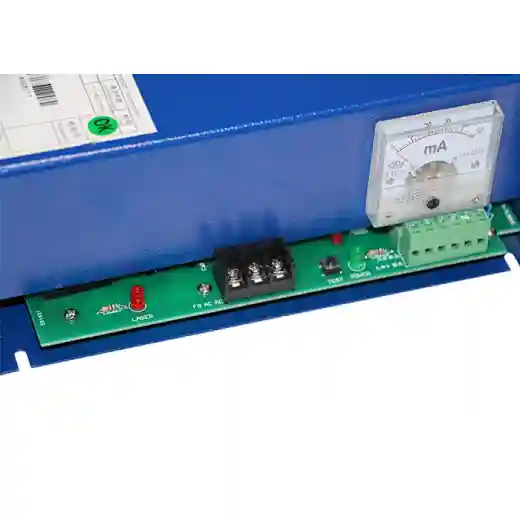

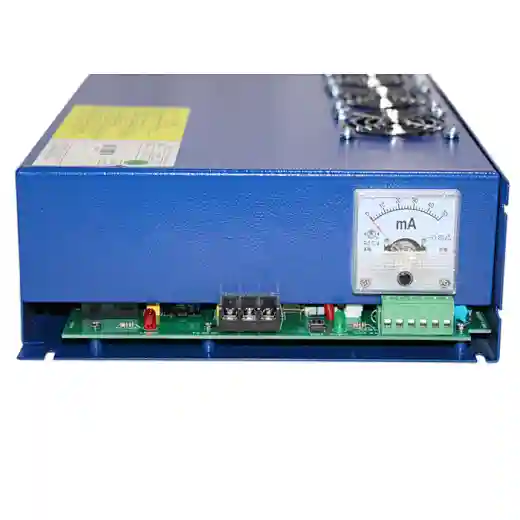

For Laser Tube connections and Pin definitions please check the tables below:

TH	Input Signal	High-level ≥ 3V   Pmin-Pmax
TL	Input Signal	Short-circuited When   Not Use
WP	Protection Switches	Short-circuited When   Not Use
G	Signal Ground	Well Connected
IN	Input Signal	0-5V Analogue Signals   or PWM Signals (1≥20KHz)
5V	Output Power	Output Voltage: 5V /   Max Output Current: 50mA

High-Level Signal Control:

High-Level Signal Control:
