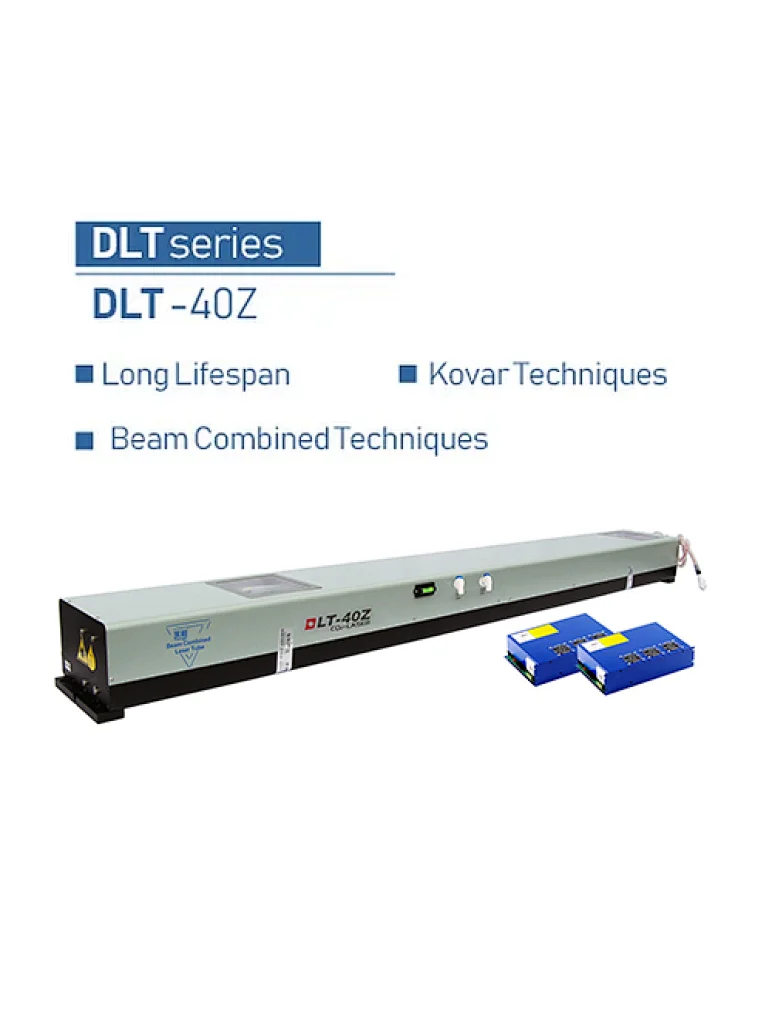

High Beam Quality
Kovar Techniques
Water and Temperature Protection System
Long Life Span
Island Structural (Gold) Coating for discharge tubes.
Along with the development of modern industry and the progress of science and technology, the application of light is more frequent. Carbon Dioxide Lasers are the lights that are the most relevant to our lives.
From advertising to clothing, marking processing to automobile manufacturing, scientific research and medical to military development. Plenty of fields are inseparable from CO2 lasers.
In order to meet the market demand for high-power CO2 lasers, the 300W CO2 Laser Tube with beam-combination techniques was developed.

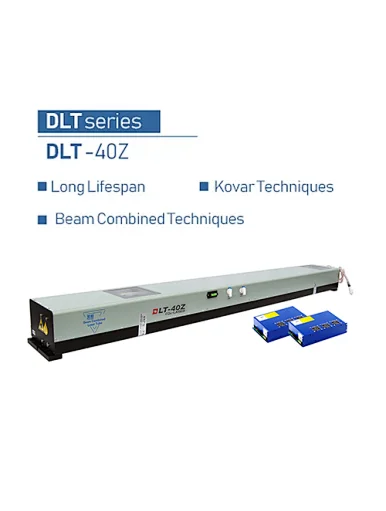

| DLT 40Z Specifications | |
| Peak Power | 320W |
| Rated Power | 300W |
| Beam Quality | ≤ 1.1 |
| Divergence | 3mrad |
| Stability | ±5% |
| Recommended Output Current | 30mA |
| Absolute Max. Current | 38mA |
| Ignition Voltage | 40kV |
| Working Voltage | 26kV |
| Operation Temperature | 15～32℃ |
| Storage Temperature | -10～35℃ |
| Operation Humidity | 30～60%RH |
| Storage Humidity | 20～80%RH |
WARNING: While the temperature of the storage environment is below 0℃, the coolant (Water)inside the lasers must be drained out completely. |
There is a variety of laser beam combining approaches to get high laser power, yet, the polarised beam combination is one of the most efficient techniques, with a beam combining efficiency close to 100%".
The core benefits of Beam Combined 300W CO2 Laser Tubes that compare to others are the extremely stable output power and high beam quality
Comparing Items | Beam Combined Laser | Non-Beam |
Polarized Beam Combination | Normal Single Tube | |
| Single Tube Working Mode ( Minimum Output PWR - 30W) Dual Tube Working Mode ( Maximum Output PWR - 320W) | Single Tube Working Mode Low Power Output Unstable High Power Output Power Shifting |
| Complete Metal Sealed Design Firmness and Elegant | Copy CMSD No covers Easy to Break |
Connection | Special HV Connector Handy & Firm Aviation Connector | Soldering Wires Weak and Complex Wire Connection |
Protection | Teflon+Si HV Protection Design Prevent Laser Tube from HV Sparks. | Si Hose+Thermal Shrinkable Sleeve Weak Electrodes Connection Gas Leakage and HV Sparks |
Resonator Length | Less than 1.6M | More than 3M |

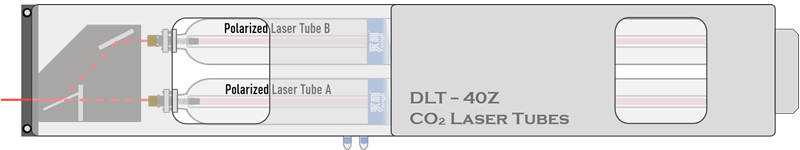

| Short Resonator Length Small Beam Size High Beam Density | Random Polarized Laser Beam Long Resonator Length Low Beam Density |
| Short Resonator(1.6M) Continuously Stable Output Laser Beam | Long Resonator(Over 3M) Power Shifting |
| US II-VI Resonator Optics Island Structural Discharge Coatings A-class Substrates, High Precisions | Other Brands Resonator Optics Short Optics Lifespan. Hi-absorption Rate |
Mounting | Metal Shells Annealing Treatment No Deformation | Marble or Plastic Holders Easy to be damaged or distorted |
Results | The Combined Laser Beam Is Non-polarized Smooth Cutting Results At Any Directions Front and Back Cutting Results are the Same for Thick Materials. Thin Cutting Kerf No Vector Shape Limitations for Thick Materials | Random Polarized Laser Beam Cutting Results are Different per Directions Front and Back Cutting Results are Different for Thick Materials. Wide Cutting Kerf Different Cutting Results for Thick Materials |
Lifespan | Single Tube Replacable Save Up Replacement Costs | The Whole Tube Needs To Be Replaced. |
Water Cooling | Water-break/Overtemperature Protection Device, Protect Laser Tubes from Water Cooling Malfunctions | No Water-break/Overtemperature Protection. |
|
Requirement. Check Output Protection Lens Regularly. | Water Cooling Compliant To Requirement. No Protection Lens, Limited Working Conditions. Caution to Dust & Residue Cleaning, Avoid HV Sparks or Gas Leakage From Reflectors. |
DLT - 40Z has a better cutting ability for organic materials; for instance, the maximum cutting thickness is 30mm. and for metals, such as carbon steel it reaches 4mm and ≤ 3mm stainless steel.
For a proper installation, please refer to the drawings below:
There are TWO Negative High Voltage Power Supplies that come with DLT-40Z. Please follow the connection instructions below.
*Note that regular high-voltage power supplies WILL NOT work with DLT series laser tubes. *
| TH | Input Signal | High-level ≥ 3V Pmin-Pmax |
| TL | Input Signal | Short-circuited When Not Use |
| WP | Protection Switches | Short-circuited When Not Use |
| G | Signal Ground | Well Connected |
| IN | Input Signal | 0-5V Analogue Signals or PWM Signals (1≥20KHz) |
| 5V | Output Power | Output Voltage: 5V / Max Output Current: 50mA |
High-Level Signal Control:
Low-Level Signal Control:
Kind Reminders:

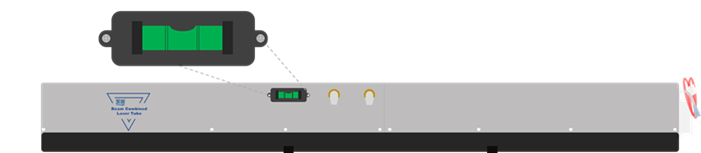

In order to assist end users in having a stable and accurate installation, Yongli DLT-40Z is designed with the Air Bubble Leveler installation positions on both sides of the laser. The Air Bubble Leveler is a standard one that you can easily find at your local stores.
