40W CO2 Laser Power Supply
Long Lifespan
Easy Control
Open Circuit Protection
High Compatibility

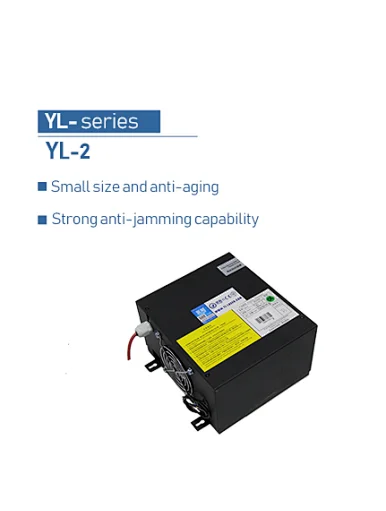

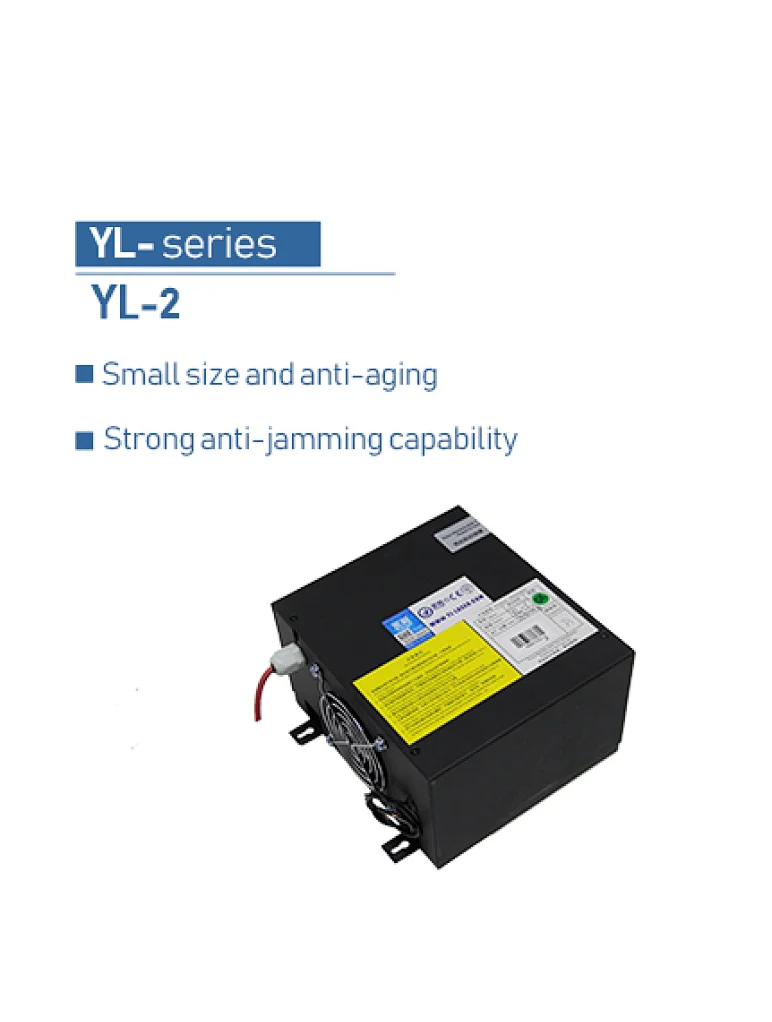

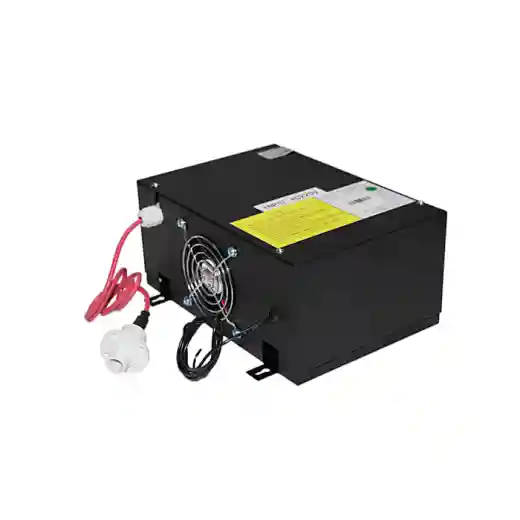

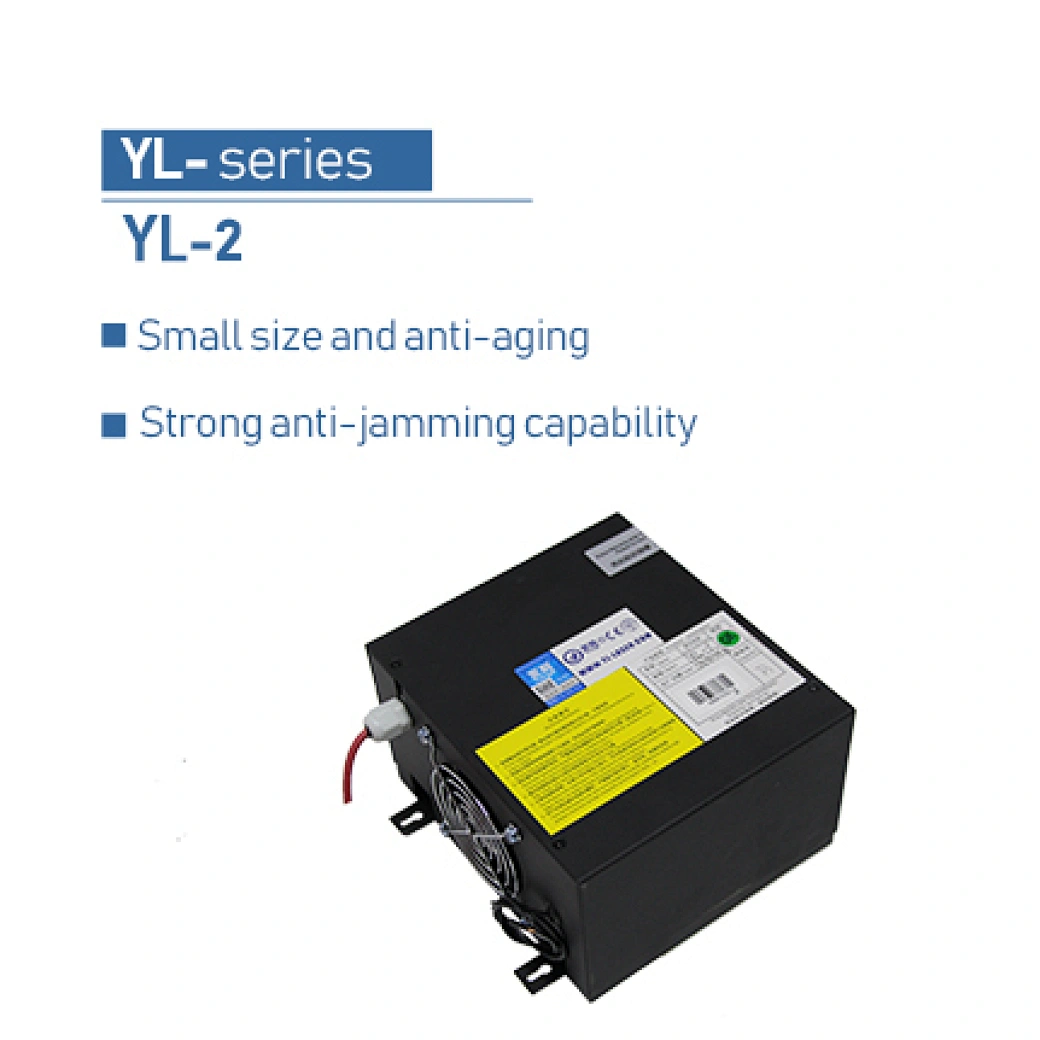

YL-2 is the standard power supply for Yongli 30W-75W CO2 laser tubes,
which is perfectly compatible with A1s(75W-90W), T0(35W-45W), T2(40W-50W) and H1(75W-90W) CO2 laser tubes.
YL-2 can be also adapted to other brands of CO2 laser tubes with an output power of 38W to 90W.
Technical Parameters

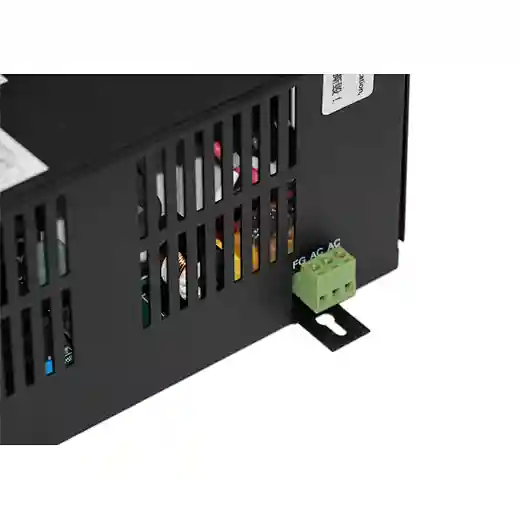

Input Voltage | AC220V or AC110V (Optional) |
AC Input Frequency | 47~440Hz |
Dimensions | 220mm x 160mm x 100mm |
Over Current Protection | Yes |
Open Circuit Protection | Yes (Within a Certain Time) |
Cooling Method | Fan Cooling |
Operating Temperature | -30℃ ~ 65℃ |
Relative Humidity | 20-85%RH (Non-Consendate) |
Vibration Resistance | Amplitude:1mm / Frequency 30Hz / 2 Hours |
Ageing Time | Continuous over 4 hours / Pulse over Half an Hour (Frequency 60Hz) |

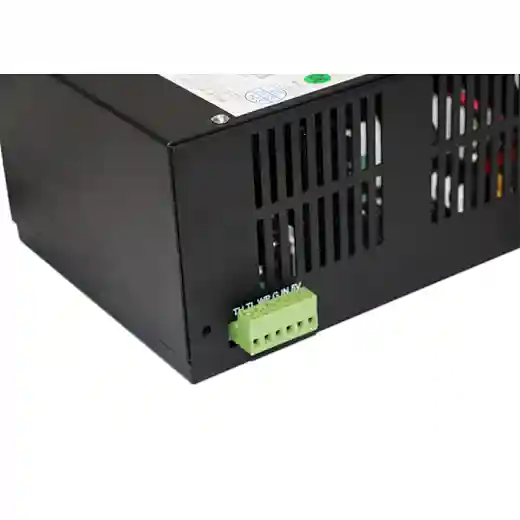

For Laser Tube connections and Pin definitions please check the tables below:
TH | Input Signal | High-level ≥ 3V Pmin-Pmax |
TL | Input Signal | Short-circuited When Not Use |
WP | Protection Switches | Short-circuited When Not Use |
G | Signal Ground | Well Connected |
IN | Input Signal | 0-5V Analogue Signals or PWM Signals (1≥20KHz) |
5V | Output Power | Output Voltage: 5V / Max Output Current: 50mA |
