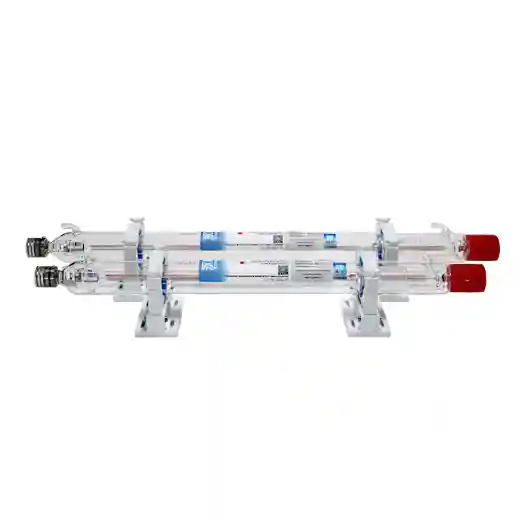

40W CO2 Laser Tube
High Pulse Capability, extremely close to the RF laser tubes.
The Ideal Laser Source for Precise Engraving and Marking.

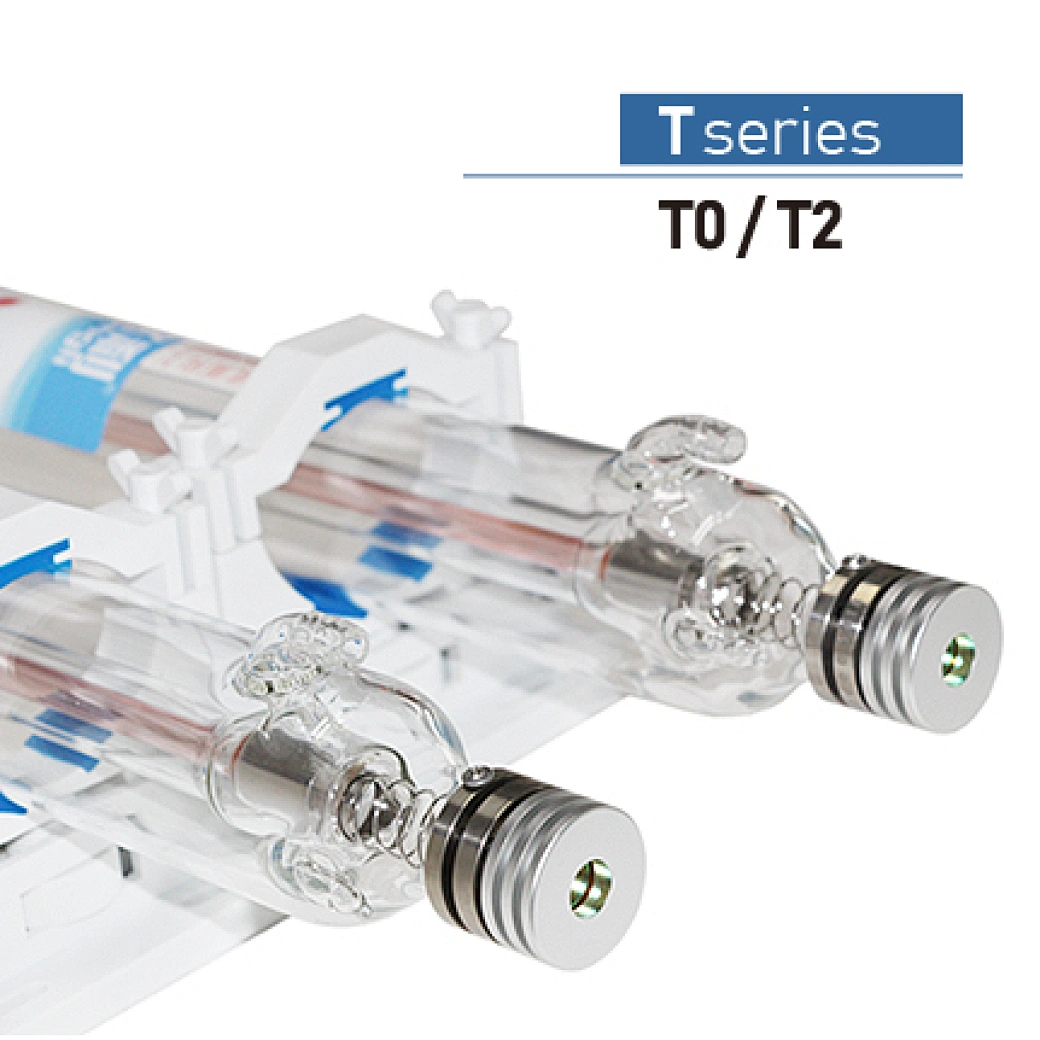

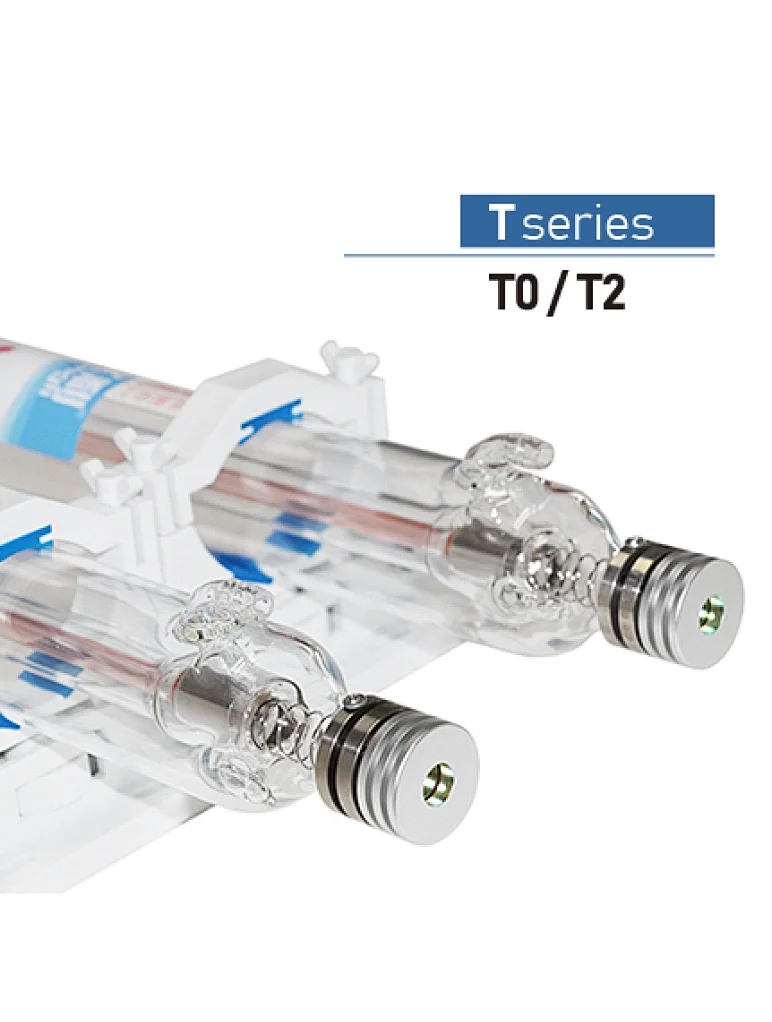

Yongli's latest R&D achievement, the T0 and T2 laser tubes inherited most of the merits of the traditional R series laser tubes, stable output etc., and also adopted the latest manufacturing technologies, such as flange cathode end and chemical coating techniques.
One of the enhancements of T0 and T2 CO2 laser tubes is they are capable of attaching the red pointer on their metalheads. The beam alignment becomes easier and faster.
Furthermore, the gorgeous beam quality and response time are the advantages of Yongli T series laser tubes.
Moreover, to gain good pulse capability T0 and T2 laser tubes are designed quite short. The lengths are 700mm and 800mm. With Yongli's unique techniques and compact size, the T0 and T2 glass laser tubes have pulse capability similar to RF Laser Tubes.
Looking for a better replacement for your low-power laser tubes, so to enhance the performance of your laser machine? T0 and T2 laser tubes are indispensable options.
High-precision CO2 Laser Tubes | |||
Yongli T0 CO2 Laser Tube | Model | Yongli T2 CO2 Laser Tube | |
38W | Rated Power | 40W | |
45W | Peak Power | 50W | |
700mm | Length | 800mm | |
18 mA | Working Current | 20 mA | |
14 mA | Recommended Working Current | 16 mA | |
16 kV | Ignition Voltage | 17 kV | |
10 kV | Working Voltage | 12 kV | |
Red Point Indicator: Optional | |||
Outer Diameter: φ55 mm ±2mm | |||
Working Life: 7000 Hours | |||
Catalyst: YES, The Latest Chemical Coating Techniques | |||
Warranty: 9 Months |
Customization is available!
Please don't be hesitate to contact either our pre-sale service online or any account manager you familiar with for your questions or concerns.
