Model NO.
ISUN-12G
Quantity:

From 1970s communication signals to nowadays industrial processing, after decades of innovation and up-gradation, fibre laser sources are comprehensively applied to various industrial regions.

To fill the gap in the development and production of optical fibre lasers, Yongli established our subsidiary, the Jilin Sunlite Laser Technology Co., Ltd. in 2017.

Sunlite Laser Technology is committed to developing and fabricating superior Fiber Laser Sources for multiple industrial usages, especially for metal cutting and welding.

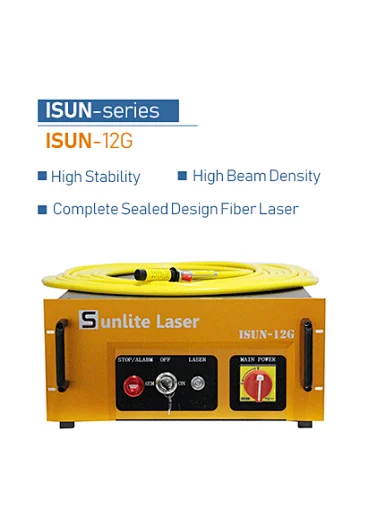

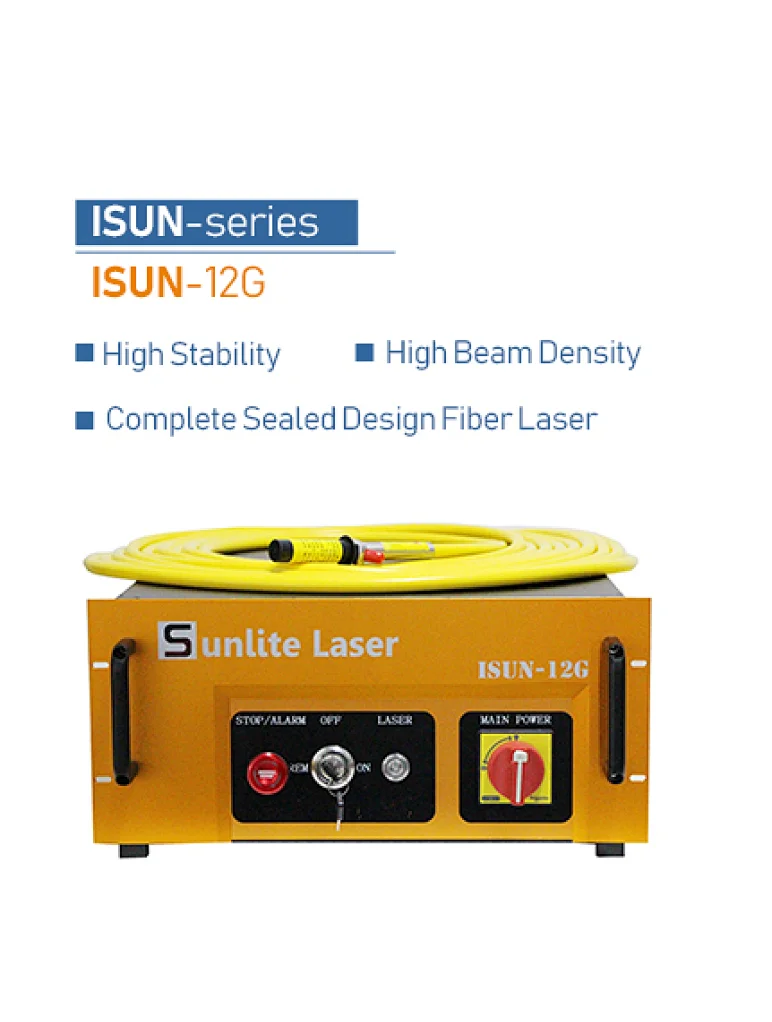

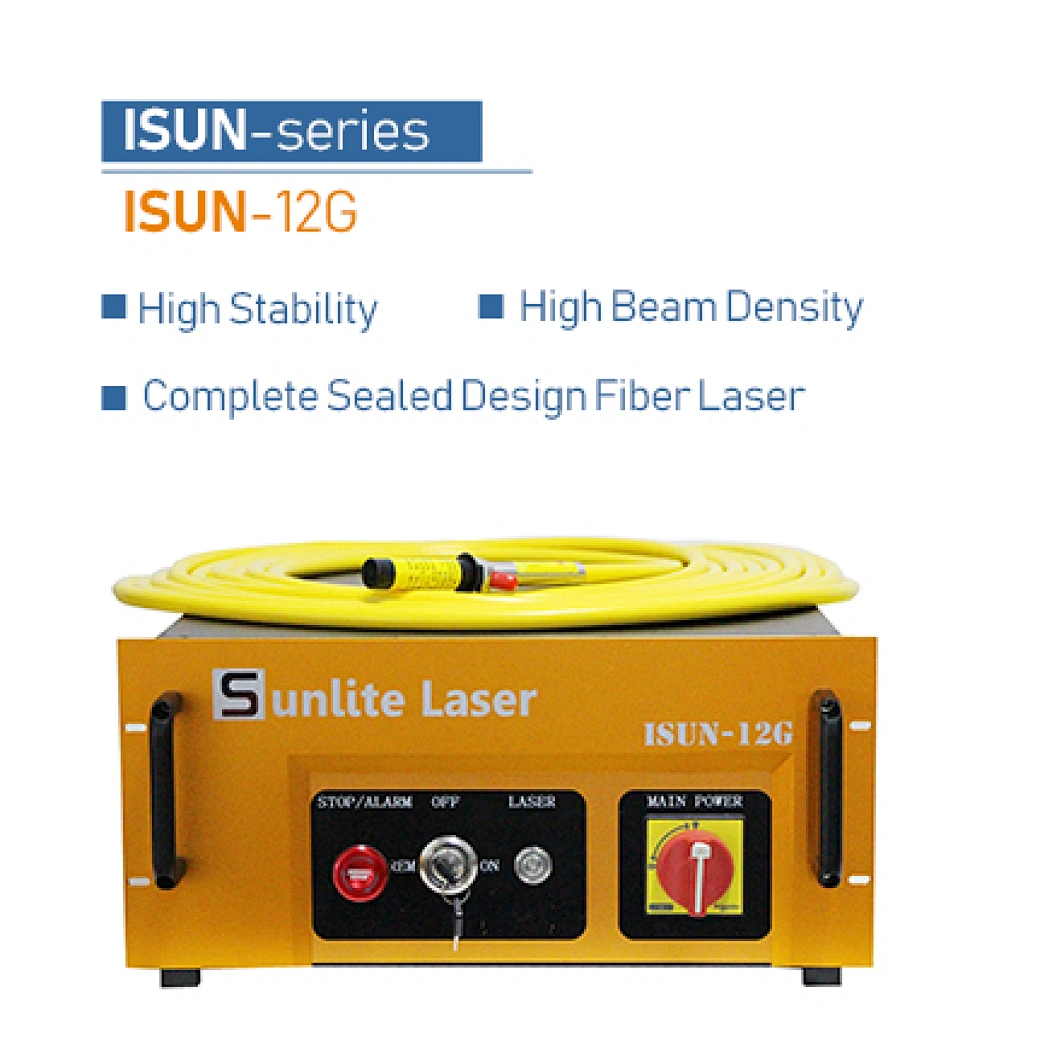

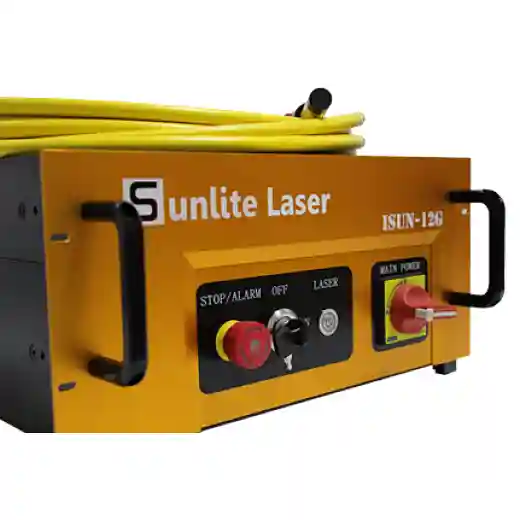

The ISUN-12G is a single-mode CW1000W Fibre laser source, in order to efficiently expand the lifespan and working stability, Sunlite chose the global top-class suppliers for the key components, for instance, the 14/250 gain fibre and Laser Diode source are all from the top rank of the supplier list,

Model

ISUN-12G

Rated Power

1100W

Central Wavelength

1070nm±3nm

Working Mode

CW/Modulation

Max Modulation Frequency

50

Output Power Instability

<3%

Red Pointer

Yes

Fiber output interface

QBH

Output Fiber Core

 50μm

Delivery Cable Length

15m/Customizable

Working Voltage (v)

AC220

Max Power Consumption

3200

Control Type

Rs232/AD/Hyper Terminal

Power Adjusting Range(%)

10-100

Working Ambient Temp. (℃)

5-35

Cooling Method

Water Cooling 25℃/>20(l/min)

Size (mm)

476x213x656

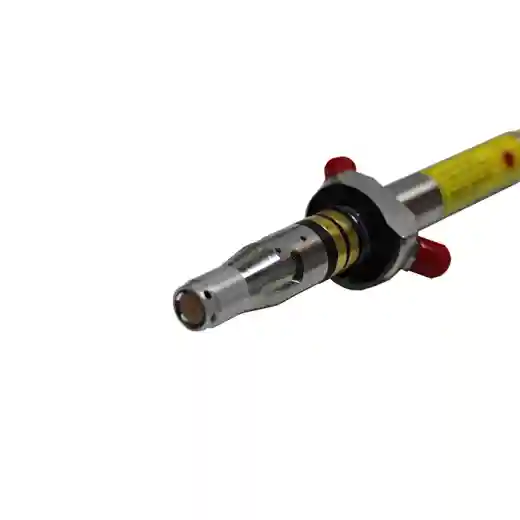

Sunlite ISUN-12G is equipped with 15 meters of optical fibre cable with 50 microns of core fibres and standard QBH connectors at the end.

fiber laser source 1000w

To enhance the integrations to multi-types of machines, ISUN-12G integrated RS232, AD Control connections at the rear end.


fiber laser 1000w

With high brightness and intensity, ISUN-12G has a remarkable metal cutting performance on a variety of metal materials, such as Steel, Carbon Still, Galvanized Plate and some highly reflective materials like Aluminum and Brass or even non-metal materials Marble.

The 1000W Fiber Laser ISUN-12G has outstanding cutting performance either on the cutting speed or the cutting results(Non-burry edges).

fiber laser welding

------------------------------------------------------------

Note:

1) We adopt the output φ50 um core fiber and run the cutting test.

2) We applied the Raytools cutting head with an optical ratio of 100/125. (collimation/focal length of the  focusing mirror)

3) Cutting auxiliary gas: liquid oxygen (purity 99.5%) liquid nitrogen (purity 99.99%)

4) Due to different working environments, different gas purity and different loss degree of cutting head or gas nozzle, this performance table is only for reference.

------------------------------------------------------------

Kind Reminders:

The ISUN-12G is also applied as the Fiber Laser source for 3D Printing and Metal Surface Treatment.
