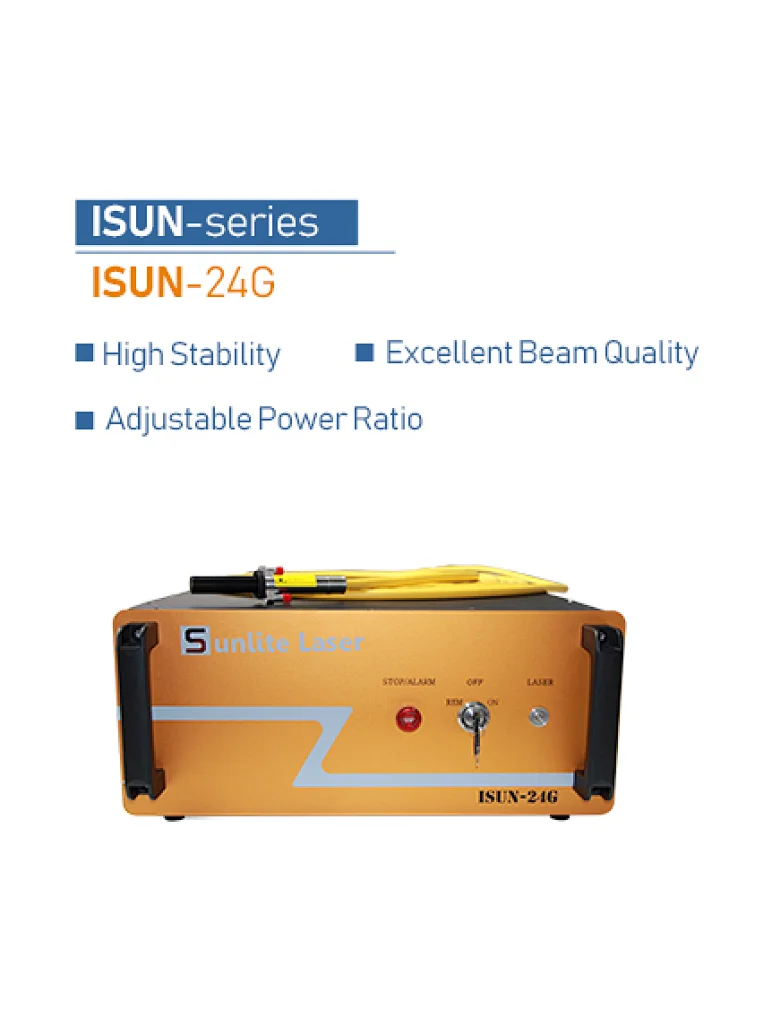

Fiber Laser 2000W
Excellent Beam Quality
High Electro-optical Conversion Efficiency
Adjustable Power Ratio
Long Working Life
Maintenance Free

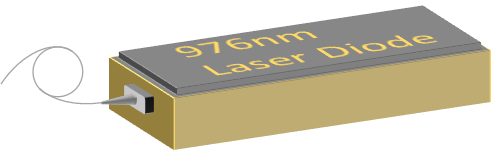

Single Mode, CW 2000W Fiber Laser Sources -- ISUN-24G utilizes a 976nm wavelength diode pump source, the advantage of that is dramatically enhancing the photoelectric converting ratio.
The All-fiber and complete sealed designs allow ISUN-24G continuously and stably operating in many complex working conditions.
Model | ISUN-24G |
Rated Power | 2000W |
Central Wavelength | 1070nm±3nm |
Working Mode | CW/Modulation |
Max Modulation Frequency | 50 |
Output Power Instability | <3% |
Red Pointer | Yes |
Fiber output interface | QBH |
Output Fiber Core | 50μm |
Delivery Cable Length | 15m/Customizable |
Working Voltage (v) | AC380 |
Max Power Consumption | 5000 |
Control Type | Rs232/AD/Hyper Terminal |
Power Adjusting Range(%) | 10-100 |
Working Ambient Temp (℃) | 5-35 |
Cooling Method | Water Cooling 25℃/>20(l/min) |
Size (mm) | 1002x535x504 |

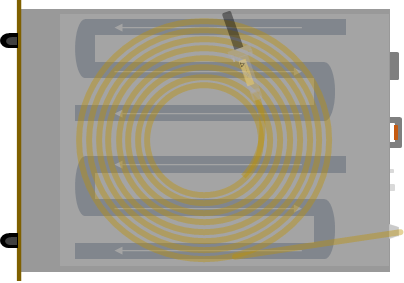

Sunlite 2000W fiber laser source adopts the macro channel techniques for the water cooling system, efficiently reducing the water resistance issues, which allows ISUN-24G to continuously and longtime process the laser works.

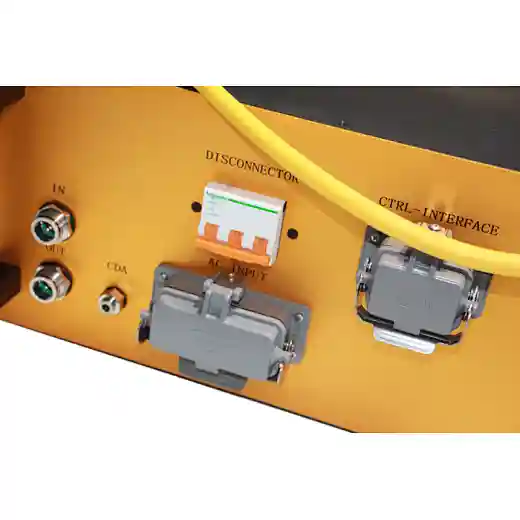

ISUN-24G is a user-friendly fiber laser source. The R&D department of Sunlite Laser finished further upgrades on the connecting components that highly integrated the redundant connecting interfaces and enhanced the machinery compatibility.
Besides that, Sunlite Laser also optimized the overall performance of 24G, with 2000W output power, it has superior cutting speed and edge treatment.
------------------------------------------------------------
Note:
1) We adopt the output φ50 um core fiber run the cutting test.
2) We applied the Raytools cutting head with an optical ratio of 100/125. (collimation/focal length of the focusing mirror)
3) Cutting auxiliary gas: liquid oxygen (purity 99.5%) liquid nitrogen (purity 99.99%)
4) Due to different working environments, different gas purity and different loss degree of cutting head or gas nozzle, this performance table is only for reference.
------------------------------------------------------------
